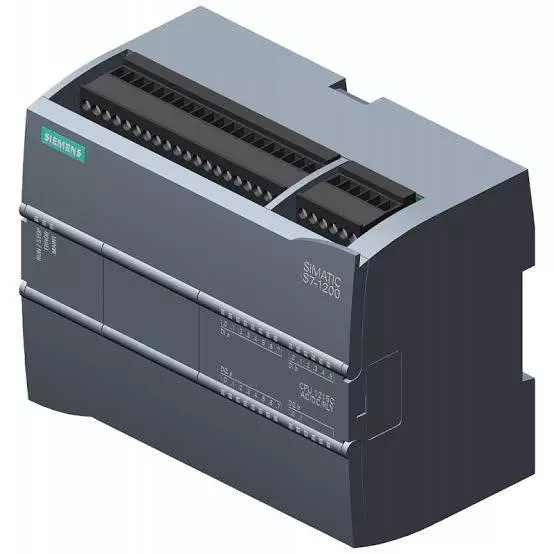

The SIMATIC S7-1200 CPU 1215C by Siemens is the high-performance flagship of the compact controller series. It distinguishes itself from the 1214C with two integrated PROFINET ports (functioning as a built-in 2-port switch) and two analog outputs on board. This makes it the ideal solution for networked applications requiring line-topology cabling and direct speed/position control of drives without additional expansion modules.
✓ 100% Genuine▣ GST Invoice⚙ Technical Support🔒 Secure Payment
Select a model to confirm price and availability.
Model
🚚 Delivery / lead time confirmed before dispatch🧾 GST invoice provided⚙ Engineering selection support available
Product Details
Ratings & Reviews
Product Details
Product Details
Key Specifications
- Digital Inputs: 14 onboard 24V DC channels
- Digital Outputs: 10 onboard channels (Transistor or Relay depending on variant)
- Analog Inputs: 2 onboard 0–10V DC channels (10-bit resolution)
- Analog Outputs:2 onboard 0–20mA DC channels (10-bit resolution)
- Work Memory: Up to 125 KB integrated program/data memory
- Communication Interface:2 RJ45 PROFINET/Ethernet Ports (Integrated Switch)
- Expansion Capability: Supports up to 8 Signal Modules (SM) on the right side
- Programming Software:Siemens TIA Portal (STEP 7 Basic or higher)
