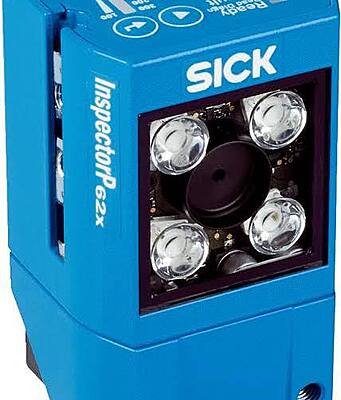

The SICK InspectorP621 (officially categorized under the V2D621x model branch) is an ultra-compact, all-in-one industrial 2D programmable vision sensor. Driven by the flexible SICK AppSpace ecosystem, it features a built-in pre-installed SICK Nova Quality Inspection toolset that simplifies pattern recognition, dimension measuring, and contour checks. Equipped with an electric autofocus lens and integrated illumination, it delivers exceptionally reliable mistake-proofing in highly restricted machine footprints.
✓ 100% Genuine▣ GST Invoice⚙ Technical Support🔒 Secure Payment
Non-returnable
Select a model to confirm price and availability.
Model
🚚 Delivery / lead time confirmed before dispatch🧾 GST invoice provided⚙ Engineering selection support available
Product Details
Ratings & Reviews
Product Details
Product Details
Key Specifications (Standard Baseline Model)
| Feature | Detail |
|---|---|
| Manufacturer | SICK AG (Germany) |
| Optical Element | CMOS Matrix Sensor, Global Shutter technology |
| Sensing Resolution | 1.3 Megapixels (1280 x 1024 pixel array) |
| Optical Focus | Motorized adjustable electrical focus |
| Working Range | 300 mm up to 1,500 mm (Installation window) |
| Continuous Voltage | 12 to 24 VDC ±20% operational loops |
| Power Consumption | Approx. 4 W typical (Peak 1.8 A current) |
| Interfaces On-board | Gigabit Ethernet (TCP/IP), RS-232, RS-422, SICK CAN net |
| Fieldbus Protocols | EtherNet/IP, PROFINET, Modbus TCP, EtherCAT (Optional via CDF600) |
| Enclosure Protection | IP65 Dust tight and splash resistant housing |
| Casing Construction | Compact Zinc Die-cast frame with PMMA window cover |
