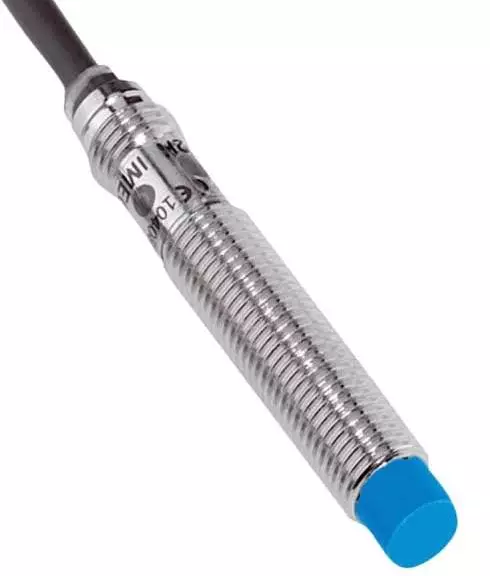

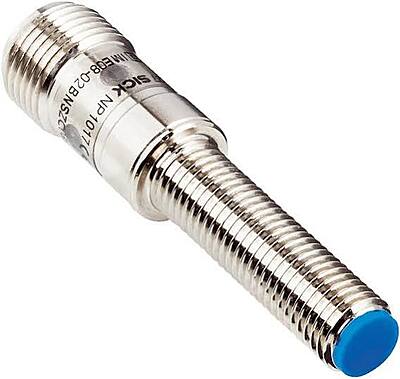

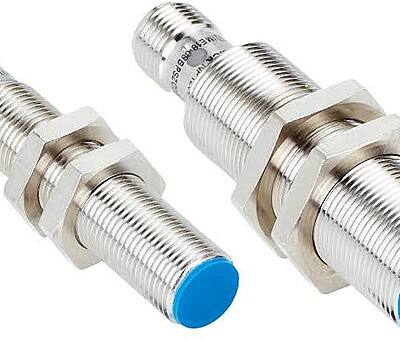

The SICK IME Series represents the economic standard for cylindrical inductive proximity sensors, trusted globally for highly accurate metal object detection. Built with SICK's patented internal ASIC chip technology, the IME series ensures exceptionally precise switching points and high repeatability across any number of production runs. To withstand extreme industrial stress, they are completely encapsulated using advanced hotmelt molding, providing elite protection against heavy machine vibrations and structural shocks.
✓ 100% Genuine▣ GST Invoice⚙ Technical Support🔒 Secure Payment
Non-returnable
Select a model to confirm price and availability.
Model
🚚 Delivery / lead time confirmed before dispatch🧾 GST invoice provided⚙ Engineering selection support available
Product Details
Ratings & Reviews
Product Details
Product Details
Key Specifications (IME12 Standard Base Model)
| Feature | Detail |
|---|---|
| Model Family | SICK IME Series (Cylindrical Threaded) |
| Sensor Technology | Inductive Proximity (Ferrous Metal Target) |
| Sensing Range (\(S_{n}\)) | 1.5 mm up to 38 mm (Standard 4mm for M12 Flush) |
| Supply Voltage | 10 to 30 VDC |
| Switching Frequency | Up to 4,000 Hz (M8 sizes) / 2,000 Hz (M12 sizes) |
| Continuous Current (\(I_{a}\)) | Maximum 200 mA |
| Enclosure Rating | IP67 (IEC 60529 standard) |
| Housing Construction | Nickel-Plated Brass body, PA 66 plastic face |
| Ambient Temperature | Operating window of -25°C to +75°C |
| Circuit Protections | Short-circuit, reverse polarity, and power-up pulse |
