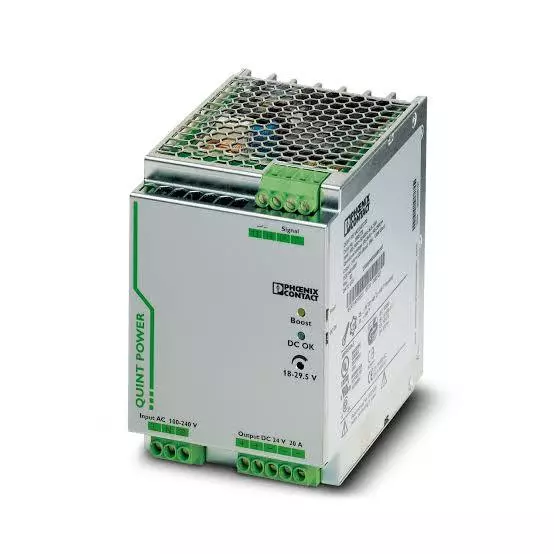

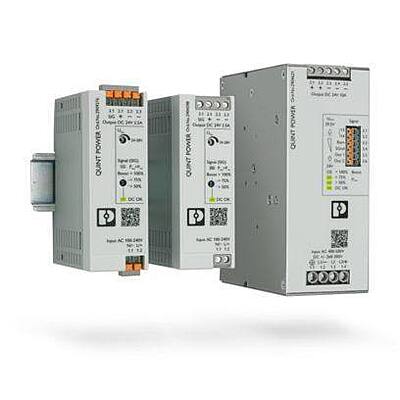

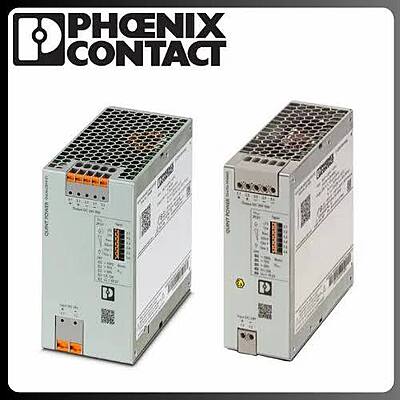

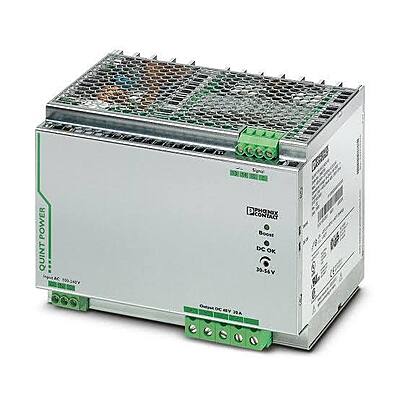

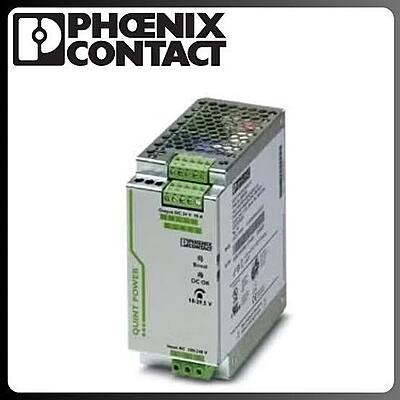

The Phoenix Contact QUINT POWER Series (anchored by the latest next-generation QUINT4 hardware platform) represents the highest performance tier for industrial switched-mode power supplies (SMPS). Designed for maximum system availability in heavy engineering, oil and gas, automotive, and infrastructure sectors, QUINT units feature patented SFB (Selective Fuse Breaking) Technology. This technology delivers 6 times the nominal current for 12 milliseconds to magnetically and instantly trip individual faulty DC branch circuit breakers, allowing parallel connected system components to continue running without interruption.
✓ 100% Genuine▣ GST Invoice⚙ Technical Support🔒 Secure Payment
Non-returnable
Select a model to confirm price and availability.
Model
🚚 Delivery / lead time confirmed before dispatch🧾 GST invoice provided⚙ Engineering selection support available
Product Details
Ratings & Reviews
Product Details
Product Details
Key Specifications (2904601 / 10A Reference Baseline)
| Feature | Detail |
|---|---|
| Manufacturer | Phoenix Contact (Germany) |
| Product Brand Family | QUINT POWER (Generation 4) |
| Input AC Operating Spectrum | 100 V AC to 240 V AC (Wide input: 85 V AC to 264 V AC) |
| Input DC Operating Spectrum | 110 V DC to 250 V DC |
| Nominal Stabilized Output | 24 V DC @ 10 Amps (240 Watts base rating) |
| Output Voltage Adjustment | 18 V DC up to 29.5 V DC via NFC or manual screw option |
| Patented Safety Feature | SFB Selective Fuse Breaking Technology (30A for 12 ms) |
| Dynamic Current Reserve | Dynamic Boost up to 15A for 5 seconds |
| Peak Operating Efficiency | Exceptional conversion up to 93.4% (at 230 VAC) |
| Physical Enclosure Protection | IP20 Rugged Sheet Metal Casing |
| Wiring Connection Interfaces | Screw connection blocks with Push-In signal terminals |
| Operating Thermal Matrix | Extreme window execution from -25°C up to +70°C |
