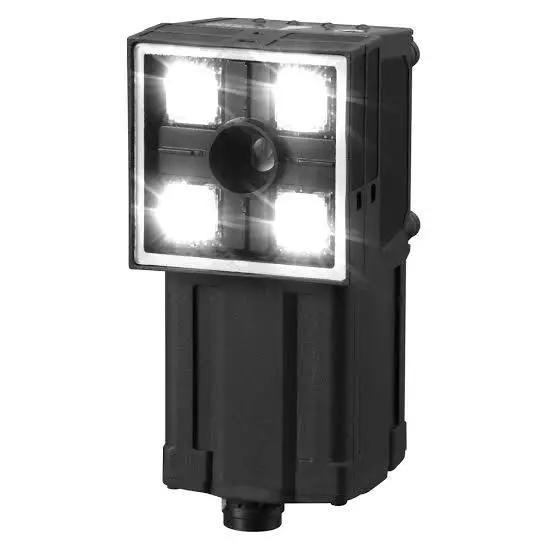

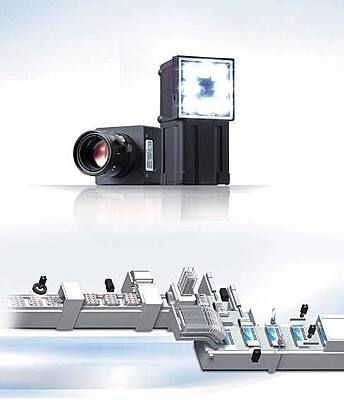

The Omron FQ2 Series is a highly versatile, all-in-one smart vision camera designed to redefine the micro-vision market. It packs advanced inspection capabilities, 2D barcode reading, OCR (Optical Character Recognition), and true color processing directly into a singular, highly compact housing. Because the high-power LED strobe ring light and adjustable lenses are completely integrated into the body, operators can deploy it onto automation lines instantly without purchasing separate lighting arrays.
✓ 100% Genuine▣ GST Invoice⚙ Technical Support🔒 Secure Payment
Non-returnable
Select a model to confirm price and availability.
Series
Model
🚚 Delivery / lead time confirmed before dispatch🧾 GST invoice provided⚙ Engineering selection support available
Product Details
Ratings & Reviews
Product Details
Product Details
Key Specifications (FQ2-S25050F Reference Baseline)
| Feature | Detail |
|---|---|
| Manufacturer | Omron Automation |
| Image Element | 1/3-inch Color CMOS Sensor matrix |
| Resolution Matrix | High-resolution array (752 x 480 pixels) |
| Processing Power | 16.7 Million True Color capability |
| Integrated Illumination | High-power pulsed White LED light ring array |
| Focus Adjustment Range | Manual trimmer adjustable (56 mm to 215 mm distance) |
| Enclosure Sealing | IP67 Water and Oil-tight washdown resistance |
| Communication Terminal | Ethernet (100BASE-TX) / EtherNet/IP / PROFINET |
| Input Supply Voltage | 24 VDC nominal (Accepts 21.6 to 26.4 VDC loops) |
| Maximum Scan Rate | Shutter speeds dynamically scale up to 1/50,000 sec |
