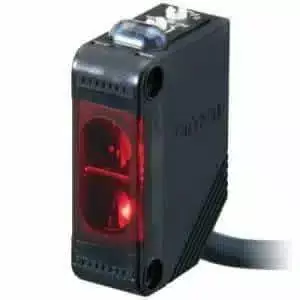

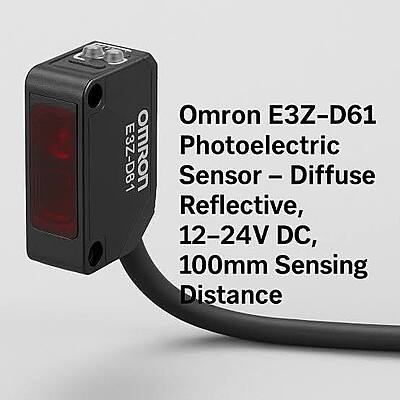

The Omron E3Z-D61 is a compact, highly reliable diffuse-reflective photoelectric sensor with a built-in amplifier. Designed for industrial automation, it detects objects directly without a reflector up to 100mm. Its robust IP67 waterproof housing and high immunity to electrical noise make it ideal for conveying, packaging, and material handling systems
✓ 100% Genuine▣ GST Invoice⚙ Technical Support🔒 Secure Payment
Non-returnable
Select a model to confirm price and availability.
Model
🚚 Delivery / lead time confirmed before dispatch🧾 GST invoice provided⚙ Engineering selection support available
Product Details
Ratings & Reviews
Product Details
Product Details
Key Specifications
| Feature | Detail |
|---|---|
| Model | Omron E3Z-D61 |
| Sensing Method | Diffuse-Reflective (Infrared LED 860nm) |
| Sensing Distance | 5 mm to 100 mm (Adjustable) |
| Output Type | NPN Open Collector |
| Response Time | 1 ms max |
| Supply Voltage | 12 to 24 VDC |
| Operation Mode | Light-ON / Dark-ON (Selectable) |
| Protection Rating | IP67 (Water & Dust Resistant) |
| Cable Length | 2 Meters (Standard) |
| Ambient Temp | -25°C to +55°C |
