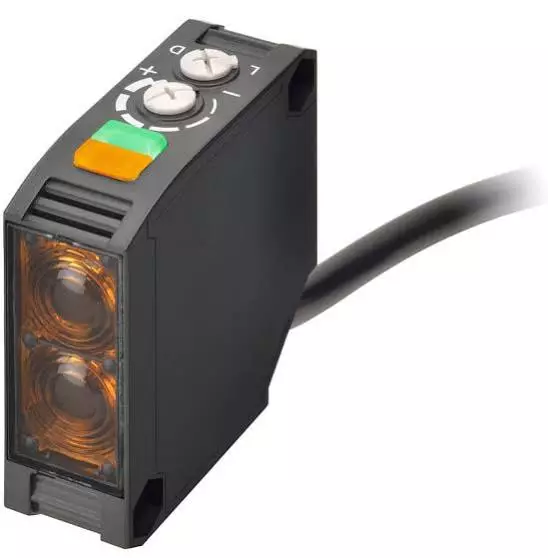

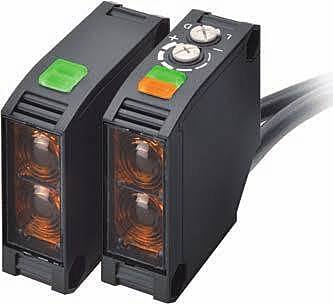

The Omron E3JK Series represents a premier benchmark for square, heavy-duty industrial photoelectric sensors featuring a built-in power supply. Designed primarily for gate automation, logistics hubs, and heavy manufacturing lines, the E3JK eliminates the need for separate DC power supplies because it features an All-Voltage Multi-Power input circuit. This allows the same sensor unit to operate seamlessly on any supply voltage ranging from 24V to 240V AC or DC.
✓ 100% Genuine▣ GST Invoice⚙ Technical Support🔒 Secure Payment
Non-returnable
Select a model to confirm price and availability.
Model
🚚 Delivery / lead time confirmed before dispatch🧾 GST invoice provided⚙ Engineering selection support available
Product Details
Ratings & Reviews
Product Details
Product Details
Key Specifications (E3JK-R/T Standard Multi-Voltage Relay Profile)
| Feature | Detail |
|---|---|
| Manufacturer Series | Omron Automation E3JK (Built-In Power Supply Family) |
| Housing Design | Heavy-duty square block type case frame |
| Body Shell Material | High-durability ABS casing with Methacrylate Resin lenses |
| Universal Supply Voltage | 24 to 240 VAC (50/60Hz) or 24 to 240 VDC |
| Control Output Type | SPDT Mechanical Relay (250 VAC, 3A max resistive load) |
| Switch Latency / Speed | 20 ms maximum response cycle time |
| Optical Beam Source | Visible Red LED (624 nm) or high-penetration Infrared LED |
| Ingress Sealing Rating | IEC 60529 compliant IP64 environmental protection |
| Operation Logic Mode | Switch selectable Light-ON / Dark-ON modes |

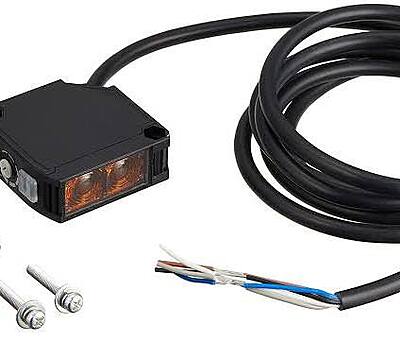

| Connection Method | Heavy-duty pre-wired 2-metre PVC connection cable |
