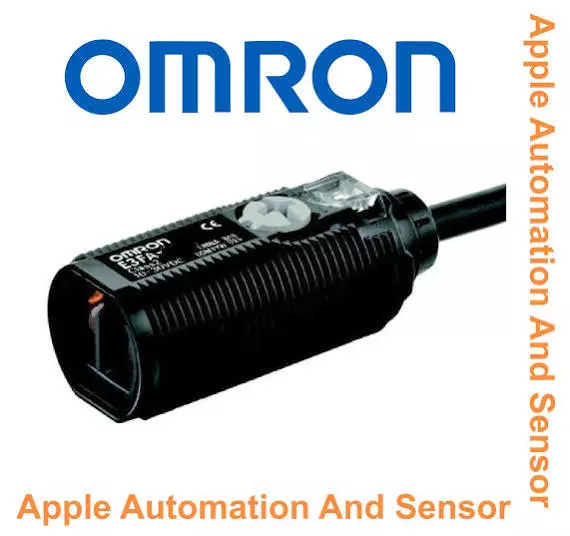

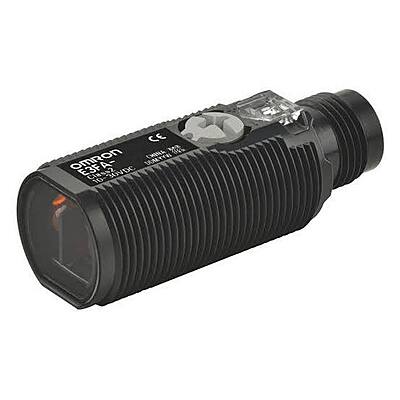

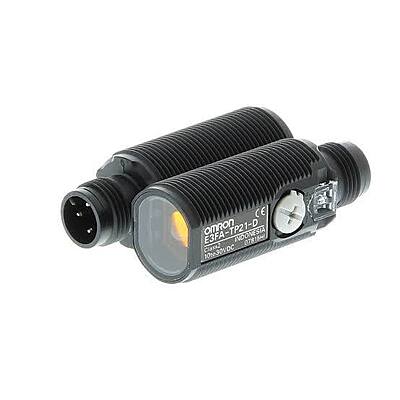

The Omron E3FA Series features a highly versatile design housed in a compact, short-body M18 cylindrical plastic chassis (ABS). Driven by a high-power, visible red LED light source, it ensures effortless sensor alignment even across extended sensing fields. Engineered for machines that run continuously, it offers elite level IP67 and IP69K washdown protections paired with advanced internal pulse synchronization loops to achieve superior ambient light and electromagnetic noise immunity.
✓ 100% Genuine▣ GST Invoice⚙ Technical Support🔒 Secure Payment
Non-returnable
Select a model to confirm price and availability.
Model
🚚 Delivery / lead time confirmed before dispatch🧾 GST invoice provided⚙ Engineering selection support available
Product Details
Ratings & Reviews
Product Details
Product Details
Key Specifications (E3FA Standard Base Profile)
| Feature | Detail |
|---|---|
| Manufacturer Series | Omron Automation E3FA Family |
| Housing Design | Cylindrical Axial Threaded M18 x 1 barrel |
| Body Shell Material | High-grade ABS plastic housing |
| Supply Voltage | 10 to 30 VDC (Includes standard 10% ripple tolerances) |
| Output Type | NPN or PNP Open Collector (100 mA max load current) |
| Operation Output Logic | Light-ON / Dark-ON select switch configuration |
| Response / Reset Speed | Ultra-fast 0.5 ms maximum latency |
| Optical Source | High-power Visible Red LED (624 nm wavelength) |
| Ingress Sealing Ratings | IEC IP67 and DIN 40050-9 IP69K high-pressure washdown |
| Diagnostic Indicators | Dual LEDs: Orange (Operation Indicator) & Green (Stability Indicator) |
