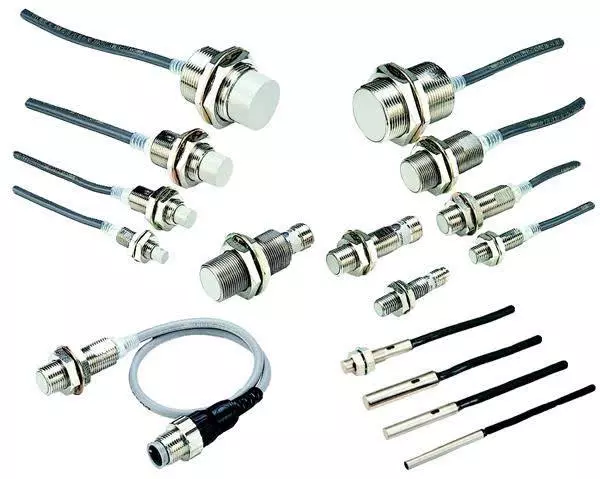

The Omron E2E Series represents the world standard for cylindrical inductive proximity sensors, trusted globally for precise ferrous metal object detection. Operating as a non-contact proximity switch, it provides exceptional sub-millimetre repeat accuracy, high-speed switching frequencies up to 5 kHz, and standard-setting oil resistance. It is a foundational component for position sensing, part-counting, and speed-monitoring loops in harsh industrial machinery setups.
✓ 100% Genuine▣ GST Invoice⚙ Technical Support🔒 Secure Payment
Non-returnable
Select a model to confirm price and availability.
Model
🚚 Delivery / lead time confirmed before dispatch🧾 GST invoice provided⚙ Engineering selection support available
Product Details
Ratings & Reviews
Product Details
Product Details
Key Specifications (M12 Base Configuration)
| Feature | Detail |
|---|---|
| Model Family | Omron E2E Series |
| Sensor Type | Inductive Proximity (Detects Ferrous Metals) |
| Sensing Distance | 2 mm to 4 mm (Up to 9 mm on E2E NEXT Premium M12 models) |
| Operating Voltage | 10 to 30 VDC (Standard DC 3-wire loop) |
| Output Current | 100 mA to 200 mA Max |
| Switching Frequency | Up to 1.5 kHz to 5 kHz (depending on diameter size) |
| Housing Protection | IP67 Water, Dust, and Oil-proof (IEC 60529) |
| Housing Material | Nickel-Plated Brass or SUS303 Stainless Steel |
| Operating Temp | -25°C to +70°C (Extended temperature models available) |
