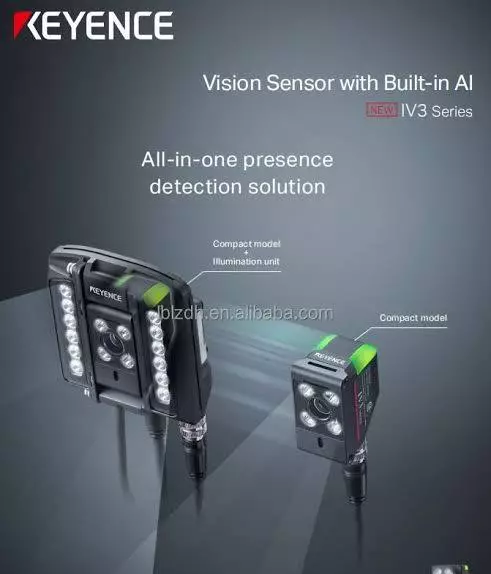

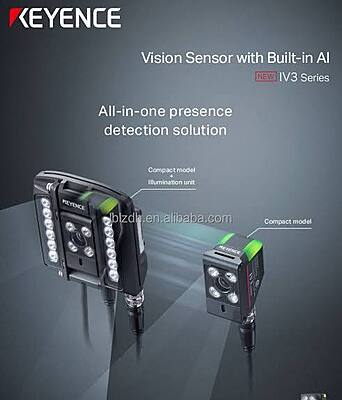

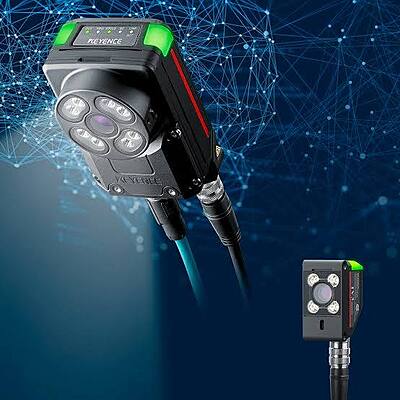

The Keyence IV3 Series is an advanced, ultra-flexible smart vision sensor featuring a built-in AI processing engine specifically engineered for high-performance mistake-proofing and difference checking on automated lines. Building significantly on its predecessor, the IV3 series expands the installation distance up to 3000 mm and boasts a massive maximum field of view of 2730 × 2044 mm. Its on-board megapixel resolution, automatic focus adjustment, and true un-affected performance against ambient light ensure complete stability in any factory setting.
✓ 100% Genuine▣ GST Invoice⚙ Technical Support🔒 Secure Payment
Non-returnable
Select a model to confirm price and availability.
Model
🚚 Delivery / lead time confirmed before dispatch🧾 GST invoice provided⚙ Engineering selection support available
Product Details
Ratings & Reviews
Product Details
Product Details
Key Specifications (IV3-G500CA Standard Head)
| Feature | Detail |
|---|---|
| Manufacturer | KEYENCE |
| Image Sensor Element | 1/2.9-inch Colour CMOS, 1280 (H) × 960 (V) Megapixel layout |
| Installation Distance | Long-range from 50 mm up to 3000 mm |
| Maximum Field of View | Up to 2730 × 2044 mm (at maximum distance range) |
| Focus Adjustment | Fully Automatic software-actuated motorized calibration |
| Exposure Timing Scale | 12 μs to 9 ms |
| Illumination Source | High-intensity White LED (Switchable between pulse/continuous) |
| Enclosure Protection | IP67 (IEC 60529 dust and water spray resistant) |
| Enclosure Material | Rugged Zinc Die-cast housing body with Acrylic front window cover |
| Communication Networks | 1 Gbps High-Speed Ethernet (EtherNet/IP, PROFINET, TCP/IP) |
