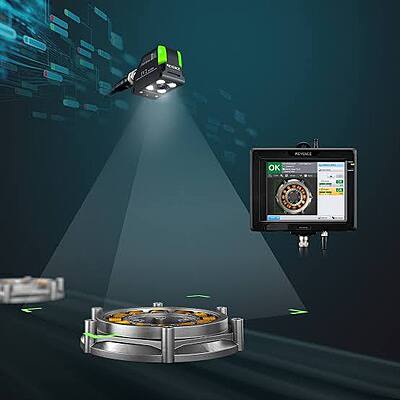

The Keyence IV2 Series is a revolutionary smart vision sensor equipped with a built-in AI algorithm specifically optimized for reliable presence/absence inspection. Unlike traditional vision sensors or smart cameras that require complex environment calibration, the IV2 easily overcomes challenges like ambient light fluctuations, misalignments, oil stains, and varying surfaces. Users can configure settings automatically simply by registering examples of "acceptable" (OK) and "unacceptable" (NG) products.
Non-returnable
Out of stock Out of stock Out of stock Out of stock
Model
Select Model
Share :
Product Details
Key Specifications (IV2-G500CA Standard Color Head)
Feature
Detail
Manufacturer
KEYENCE
Image Sensor Element
1/3-inch Color CMOS, 752 x 480 pixel resolution
Reference Distance
20 mm to 500 mm
Focus Adjustment
Fully Automatic (Software-actuated at setup time)
Illumination Source
High-intensity White LED (Pulse lighting/DC lighting modes)
Exposure Time Scale
1/10 to 1/50,000 seconds
Enclosure Protection
IP67 Water and Dust tight (IEC 60529)
Case Construction Material
Zinc Die-cast housing, hard-coated Acrylic lens face cover
Vibration & Shock Resistance
10 to 55 Hz amplitude / 500 m/s² impact rating
Module Net Weight
Approx. 75 grams
