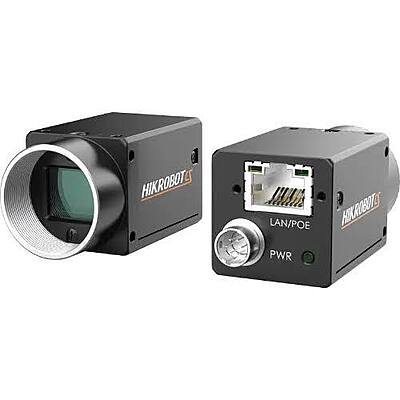

The HikRobot MV-CS060-10GC is a highly competitive, next-generation 6 MP Gigabit Ethernet (GigE) industrial area scan camera belonging to HikRobot's signature CS Series. Powered by the exceptional 1/1.8" Sony® IMX178 CMOS sensor, it delivers stunning, high-resolution color imaging tailored for electronic manufacturing, SMT/PCB inspection, and automated optical inspection (AOI) lines.
✓ 100% Genuine▣ GST Invoice⚙ Technical Support🔒 Secure Payment
Non-returnable
Select a model to confirm price and availability.
Model
🚚 Delivery / lead time confirmed before dispatch🧾 GST invoice provided⚙ Engineering selection support available
Product Details
Ratings & Reviews
Product Details
Product Details
Key Specifications (MV-CS060-10GC Base Model)
| Feature | Detail |
|---|---|
| Manufacturer | HikRobot (Machine Vision Division) |
| Image Sensor Element | 1/1.8" Sony® IMX178 CMOS matrix sensor |
| Sensing Resolution | 6.3 Megapixels (3072 × 2048 active grid resolution) |
| Pixel Structural Size | 2.4 μm × 2.4 μm |
| Sensor Shutter Architecture | High-precision Rolling Shutter matrix |
| Frame Rates at Max Res | 19.1 fps (Scales up to 30.7 fps on PRO models) |
| Lens Mount Interface | Standard threaded C-Mount |
| Data Interface Connection | Gigabit Ethernet (GigE / RJ45 interface) |
| Power Loops Injection | 9 to 24 VDC external power block or Power over Ethernet (PoE) |
| Digital Inputs & Outputs | 1 x Opto-isolated Input, 1 x Opto-isolated Output, 2 x Bi-directional I/O |
| Software Compatibility | GigE Vision V2.0, GenICam standard, and MVS Software Suite |
