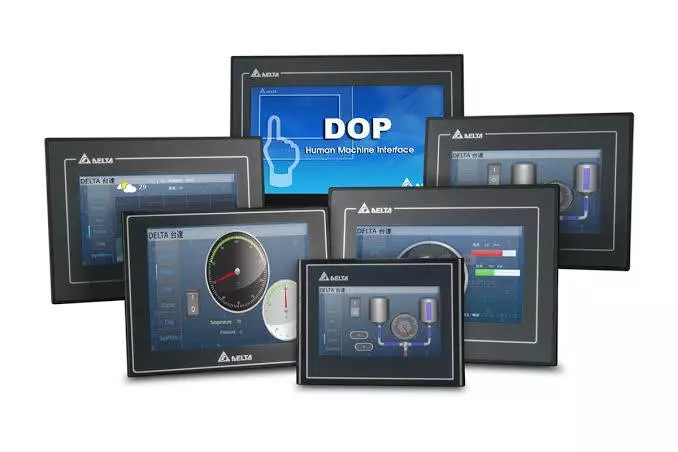

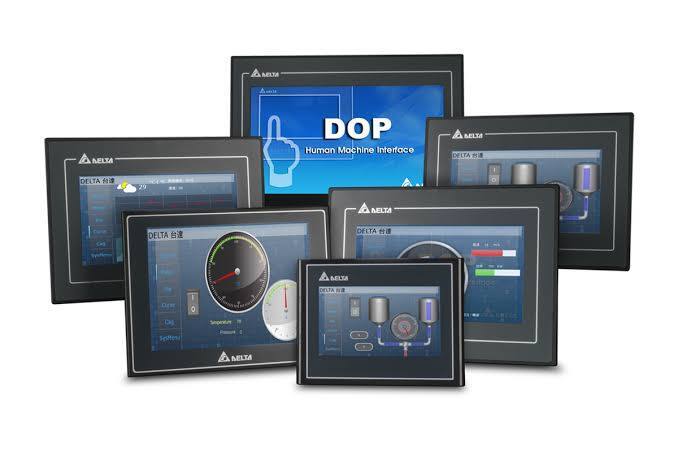

The Delta Human Machine Interface (HMI) DOP series offers a range of high-performance touchscreens designed for efficient industrial automation and control. Delta's HMI solutions are categorized into distinct series tailored for different application complexities, ranging from standard sequential control to high-end networked systems
✓ 100% Genuine▣ GST Invoice⚙ Technical Support🔒 Secure Payment
Select a model to confirm price and availability.
Model
🚚 Delivery / lead time confirmed before dispatch🧾 GST invoice provided⚙ Engineering selection support available
Product Details
Ratings & Reviews
Product Details
Product Details
Key Product Series
- DOP-100 Series (Modern Standard): Adopts the latest Cortex-A8 high-speed processor and high-brightness 65,536-color LCD panels. It supports advanced cloud integration through protocols like MQTT and OPC UA, along with remote monitoring features like VNC and FTP.
- DOP-W Series (Large/High-End): Features larger screens (up to 15") with high resolution and high brightness. Built with rugged aluminum enclosures and integrated stereo speakers, it is designed for demanding high-end applications.
- DOP-B Series (Legacy/Versatile): Offers multiple dimensions and colors with support for over 30 brands of PLCs and controllers. It provides up to three serial communication interfaces (RS-232/RS-422/RS-485) and standard SD card support.
Core Specifications (DOP-100 Series)
- Display: 65,536-color TFT LCD available in sizes like 4.3", 7", 10.1", and 15".
- Processor: ARM Cortex-A8 (800 MHz to 1 GHz).
- Memory: Typically 256MB to 512MB RAM and 256MB ROM.
- Connectivity: Integrated Ethernet, USB Host/Client, and multi-serial COM ports.
- Software: Programmed using Delta DOPSoft (Windows-based Screen Editor).
- Durability: IP65-rated waterproof front panels and endurance-tested touchscreens (>10M presses).
