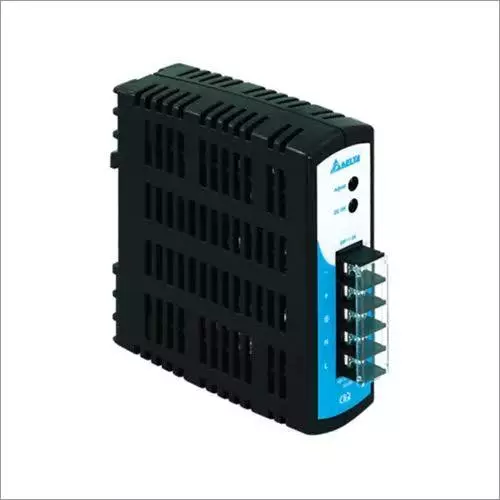

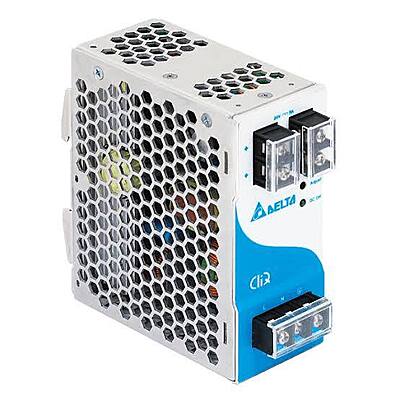

The Delta DRP Series is highly celebrated for its industrial-grade toughness and unique capability to deliver full nominal power across its entire universal input voltage range (85 to 264 VAC) without de-rating. Built explicitly for harsh environments, DRP modules feature a corrosion-resistant casing (advanced polymer or industrial aluminum) along with fully conformal-coated internal PCBAs to shield vital circuitry from conductive factory dust, moisture, and mild airborne chemical pollutants.
Non-returnable
Out of stock Out of stock Out of stock Out of stock Out of stock
Model
Select Model
Share :
Product Details
Key Specifications (DRP024V060W1AZ Standard Reference)
Feature
Detail
Manufacturer
Delta Electronics
Product Line Family
CliQ DIN Rail Power Supply Series
Input AC Operating Spectrum
Universal 85V AC to 264V AC (No de-rating across full window)
Nominal Regulated Output
24 V DC @ 2.5 Amps (Total rated capacity: 60 Watts)
Output Adjustment Window
Secondary voltage adjustable from 22V to 28V DC via front trimmer
Residual Noise / PARD
< 240 mVpp peak-to-peak maximum
Mechanical Shock Sealing
Heavy-duty vibration (5G) and shock (30G) resistance
Enclosure Rating
IP20 finger-safe enclosed structural body
Operating Thermal Matrix
Functional operation window from -20°C up to +80°C
