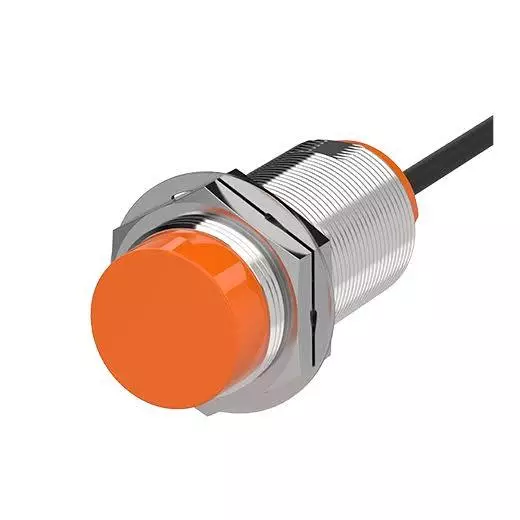

The Autonics CR Series is an industry-trusted family of cylindrical capacitive proximity sensors engineered for non-contact level detection and position control. Unlike standard inductive sensors that only detect metals, the CR Series can detect any material with a dielectric constant different from air. This allows it to easily sense both conductive and non-conductive targets including liquids (water, oil), plastics, glass, wood, grains, and metals.
✓ 100% Genuine▣ GST Invoice⚙ Technical Support🔒 Secure Payment
Non-returnable
Select a model to confirm price and availability.
Model
🚚 Delivery / lead time confirmed before dispatch🧾 GST invoice provided⚙ Engineering selection support available
Product Details
Ratings & Reviews
Product Details
Product Details
Key Specifications (CR30-15DN / CR30-15DP Base Model)
| Feature | Detail |
|---|---|
| Model Family | Autonics CR Series (Cylindrical Capacitive) |
| Sensing Target | Conductive & non-conductive materials (Water, plastic, wood, iron, grains) |
| Sensing Distance | 15 mm (Adjustable via integrated sensitivity volume dial) |
| Operating Voltage | 12 to 24 VDC (Accepts functional range of 10-30 VDC) |
| Response Frequency | 50 Hz |
| Current Consumption | Maximum 15 mA |
| Protection Structure | IP65 to IP67 environmental sealing |
| Housing Material | Nickel-Plated Brass case with plastic sensor face |
| Indicators | Onboard Red LED Operation Status indicator |
| Connection Style | Pre-wired 3-core cable (2-metre length) |
